Access Panel – Automated Cutout + Panel Builder

Give your installers proper access behind cabinetry without butchering panels on-site.
This program automates clean, machinable access cutouts anywhere you need them — backs, tops, bottoms, ends, and partitions.

What it does

• Generates a perfectly sized access opening

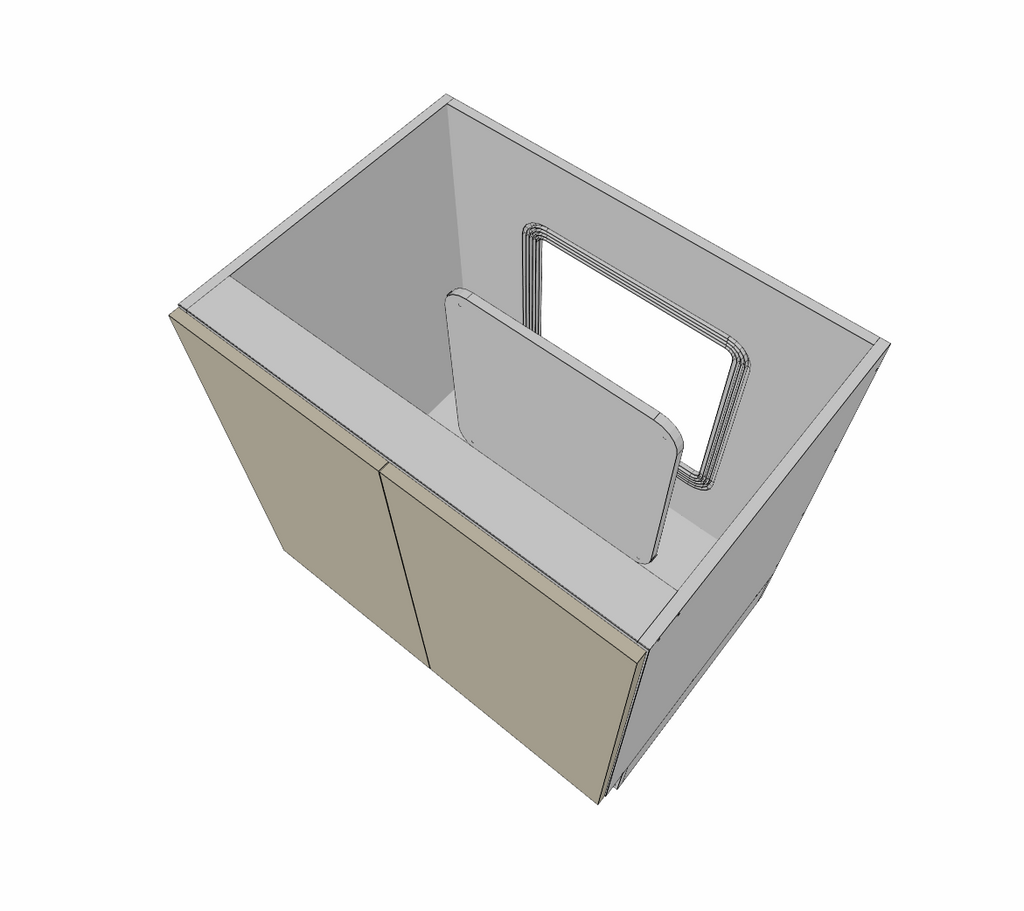

• Automatically creates a removable access panel
• Adds the correct radiused corners for CNC
• Outputs all parts directly to S2M for clean machining
• Works on any cabinet type (base, wall, tall, vanity, custom)

Why it matters

• No more jigsaws or rough cutouts on site
• Faster service access behind joinery
• Clean, consistent, repeatable openings
• Ideal for plumbing, electrical, HVAC, and appliance maintenance zones

Key Features

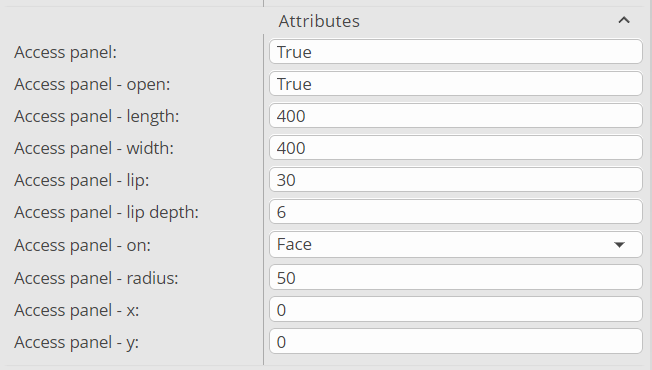

• Fully parametric size control
• Supports rounded rectangle or straight-edge openings
• Auto-positions the cutout where you need it
• Handles panel edging logic
• Works with CV25.2+
• Generates a neat, removable access panel for future service

Perfect for

• Back panels behind sinks
• Appliance access (dishwashers, fridges, ovens)
• Concealed electrical / plumbing services

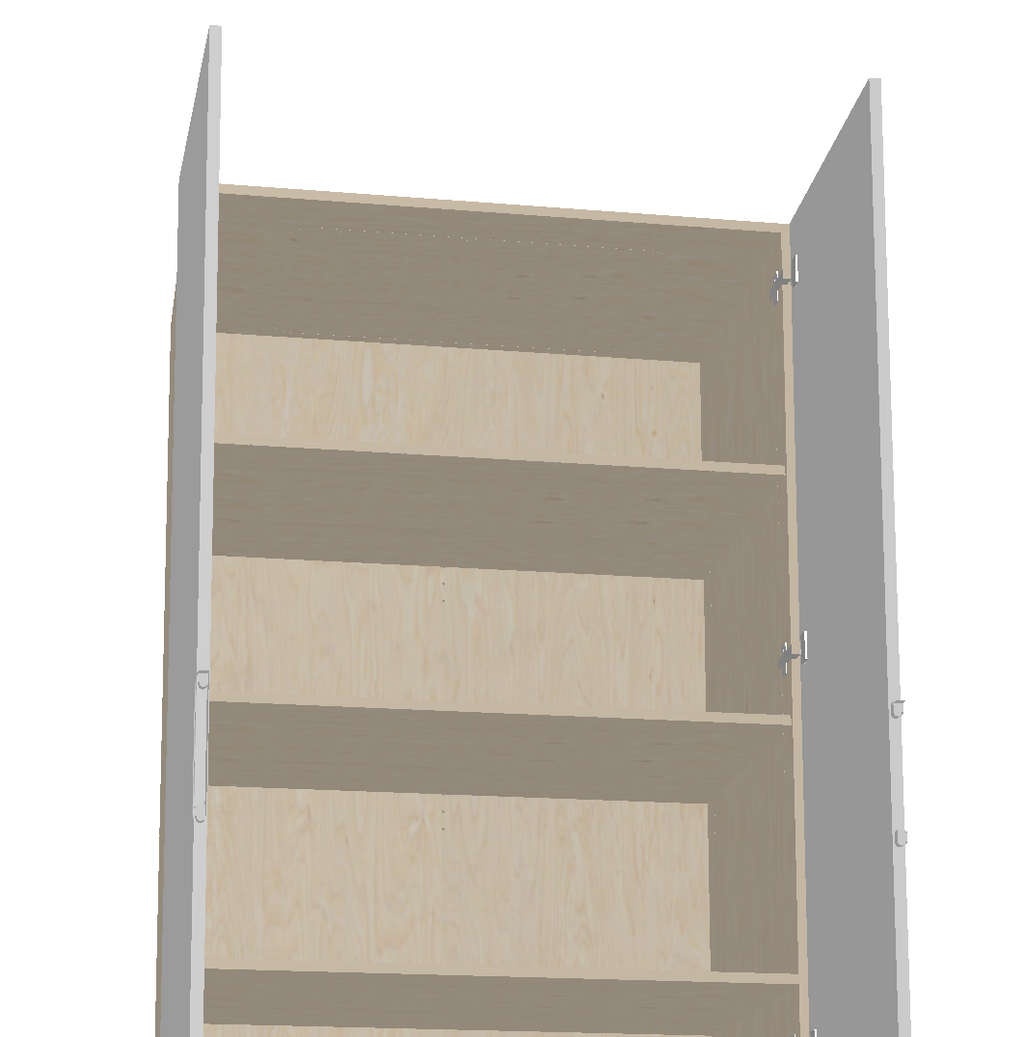

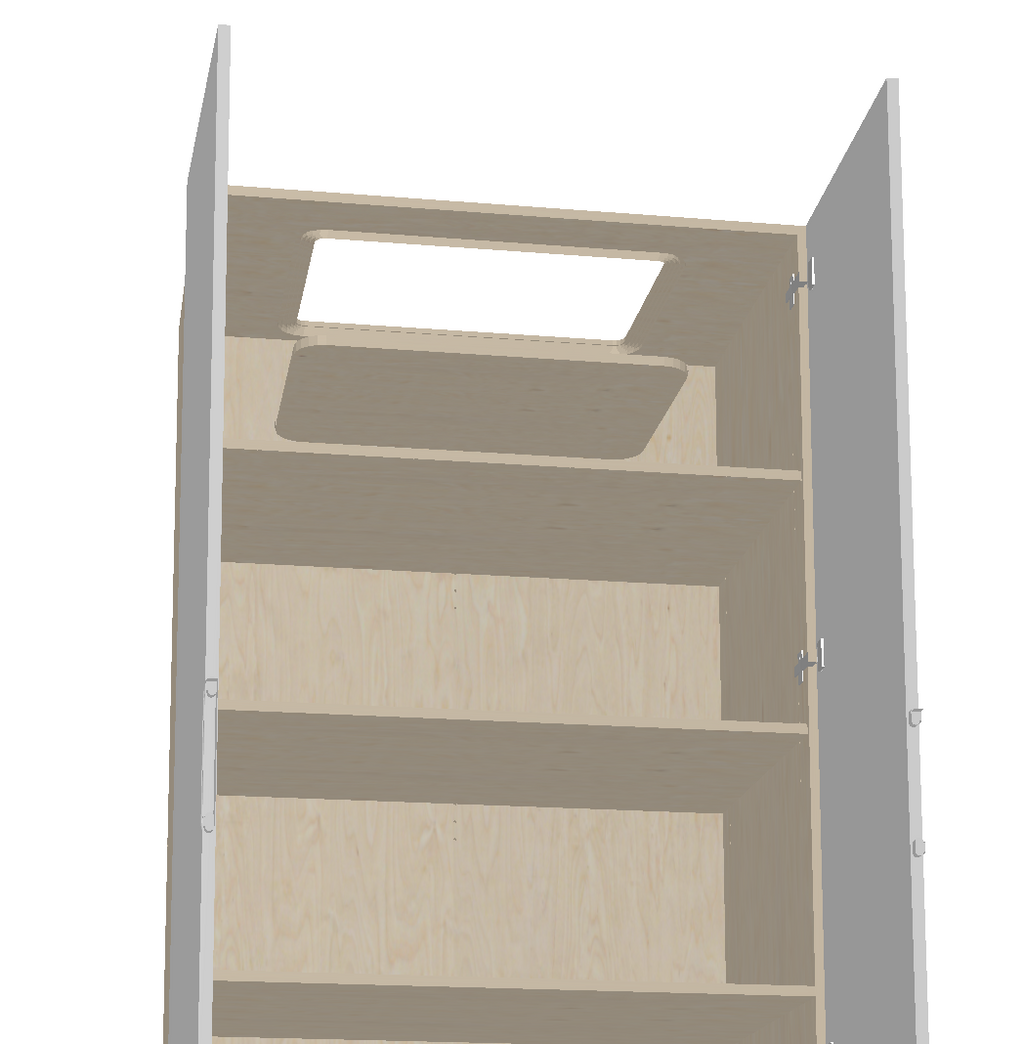

• Void access in tall cabinets
• Bulkheads and tops needing maintenance openings

If you need to tidy up your shop drawings and CNC programs while giving installers a proper way to reach hidden services, this program fixes the whole workflow.
