Underpanel

Underpanel with LED & Rangehood Routing – Cabinet Vision UCS

Automatically add a finished underpanel to overhead cabinets — no manual parts, no sketching, no fixing later.

This UCS intelligently creates underpanels for straight runs, extensions, L-shapes, and corner cabinets, giving you a clean, professional underside every time.

Optional LED strip routing and undermount rangehood cutouts are applied directly to the panel, with LED routing that follows the panel shape and wraps cleanly around corners.

Key Features

• Adds a finished underpanel to overhead cabinets automatically
• Extends left, right, or both sides

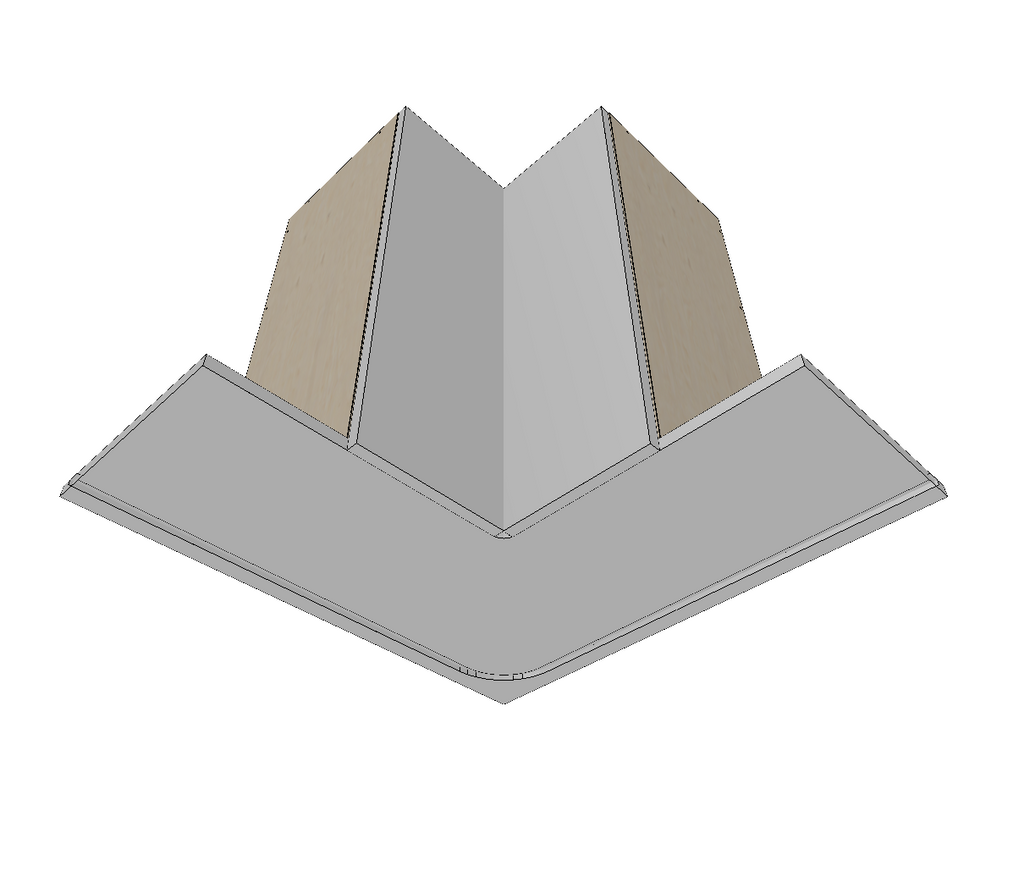

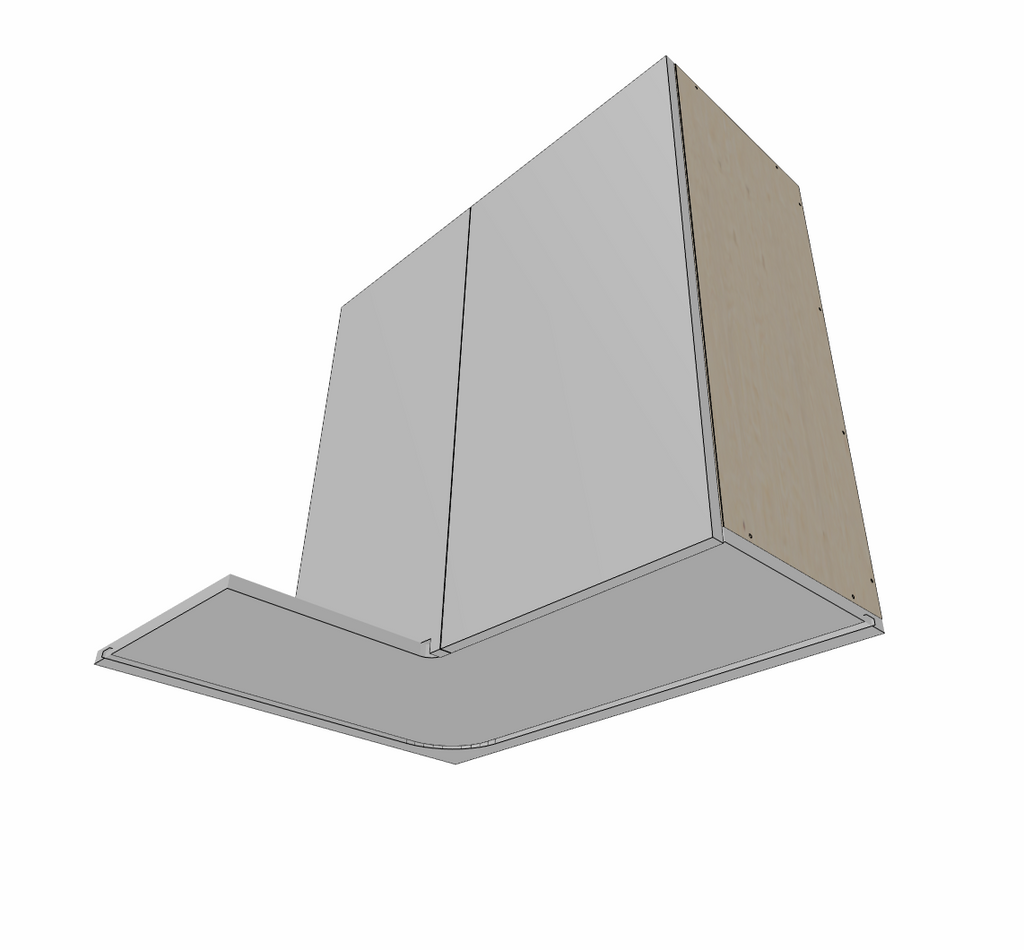

• Supports L-shaped and corner cabinets
• Routes LED strip lighting, including around corners

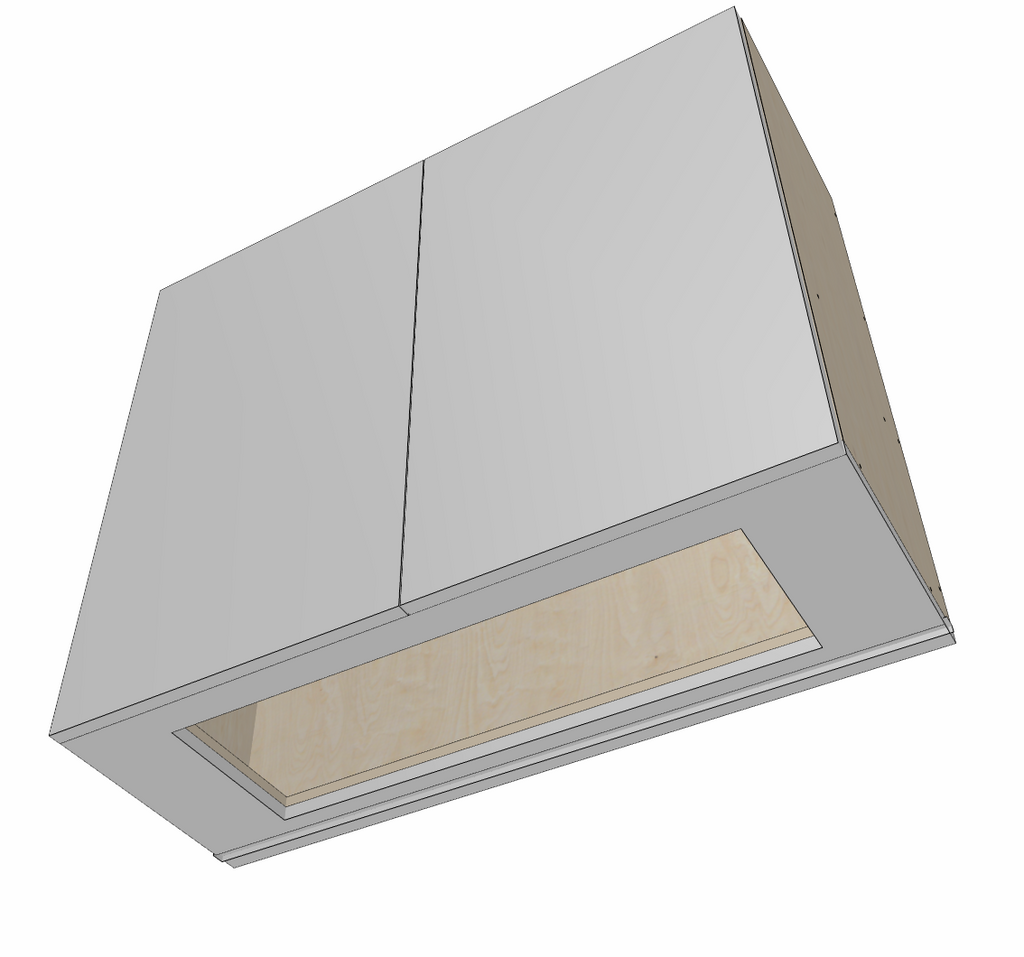

• Automatically routes undermount rangehood cutouts
• CNC-ready, production-safe output

Why It Matters

• No manual underpanel setup
• No missed finished ends
• Faster overhead cabinet design
• Consistent, professional results
