Range Hood – Compound Curve

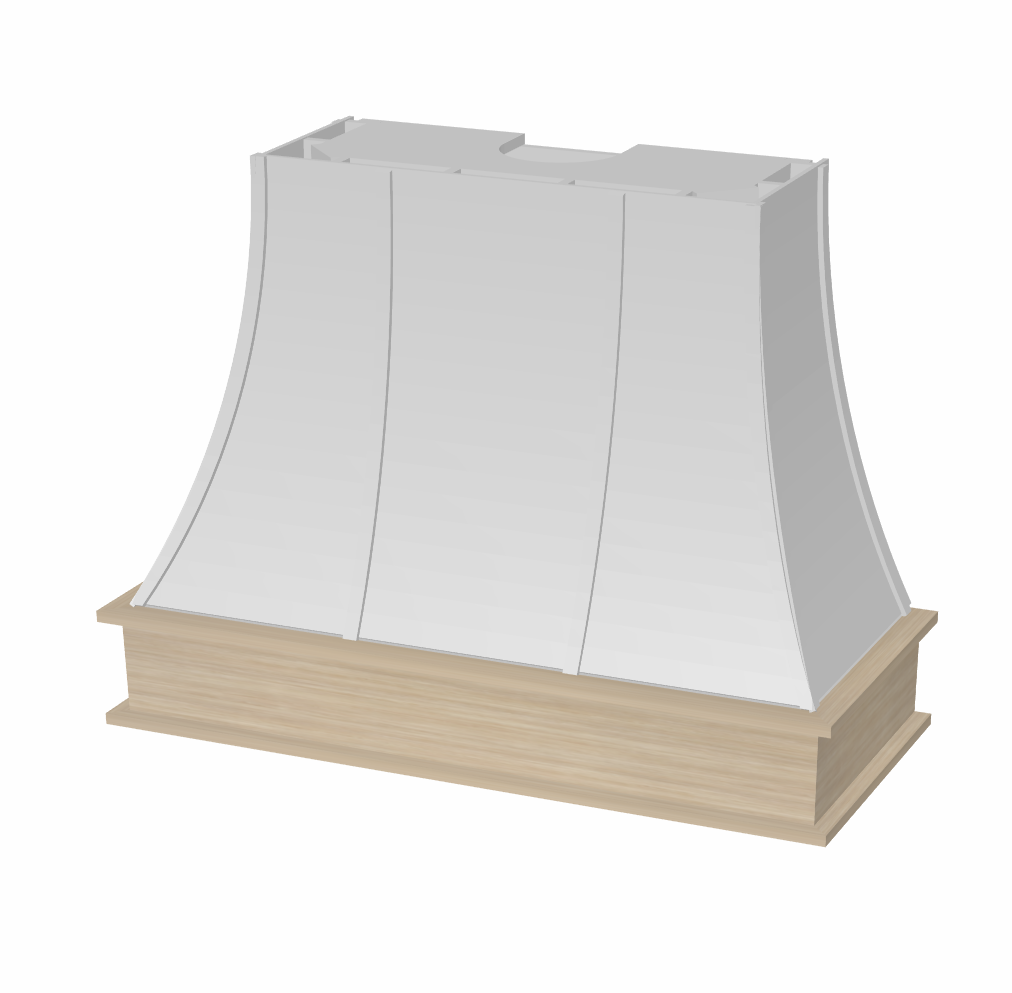

A fully parametric compound-curved range hood cabinet designed for premium architectural projects and effortless, real-world production.

Key Features

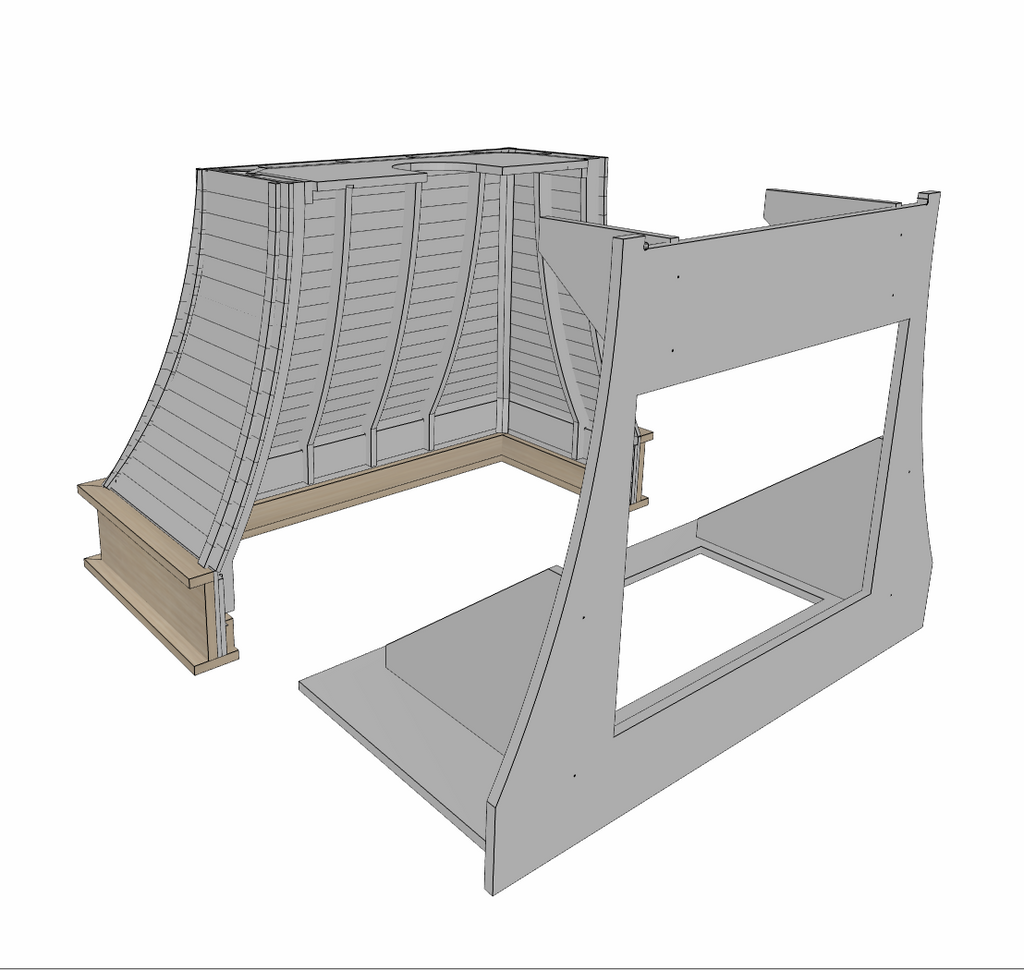

• Slide-off canopy — the entire canopy slides forward to give full access to the appliance, ducting, wiring, and internal components

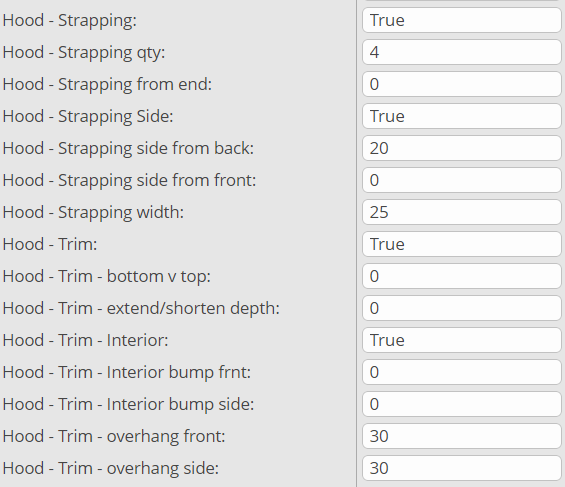

• Trim / strapping toggle — enable or disable edge trim depending on whether the hood is exposed or fully wrapped into plasterboard

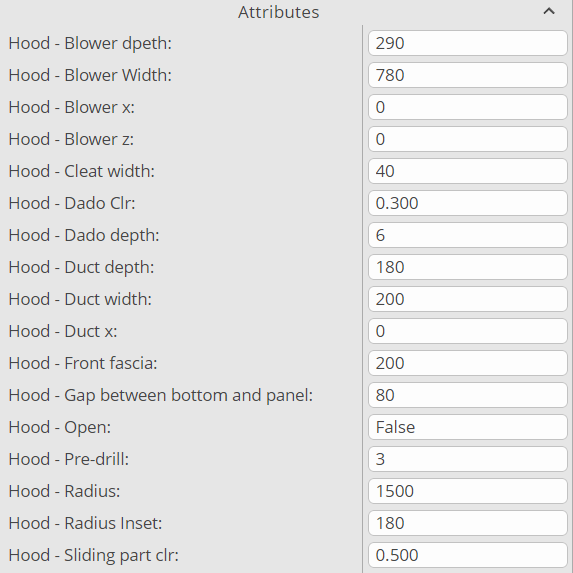

• Compound-curve geometry — automatically generates accurate curvature across both axes from your width, height, radius, and taper settings

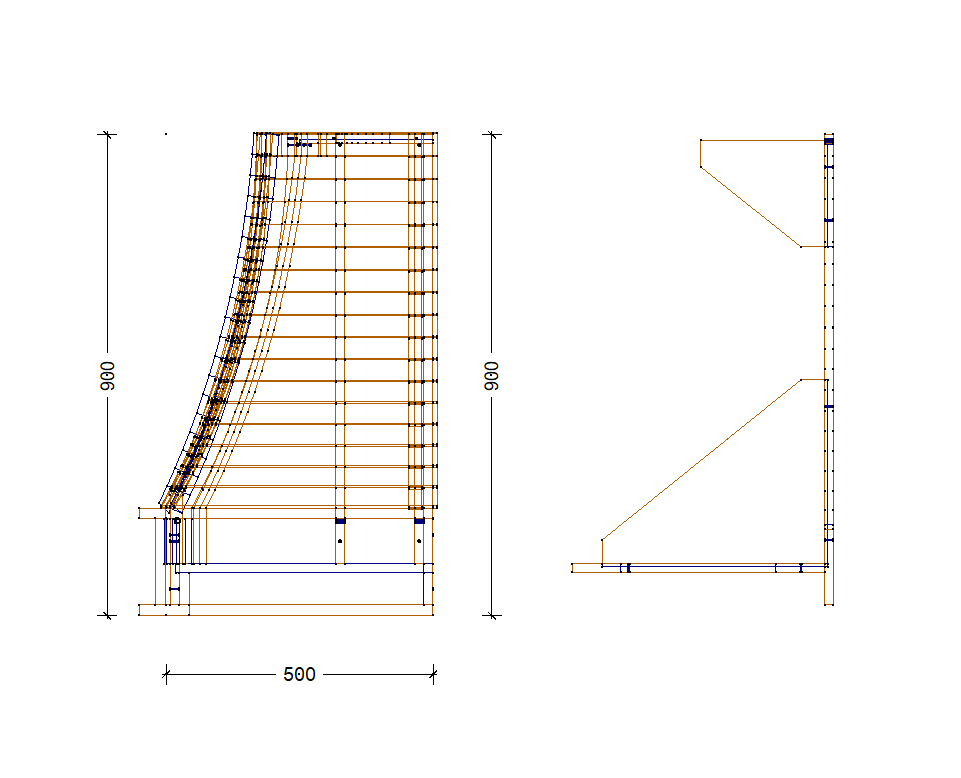

• Internal supports and bracing — dynamically built to suit the curved profile, ensuring strength and machining accuracy
• Full S2M automation — all parts, dados, pre-drills, and curved machining output cleanly with no manual edits

Why It Works Well

• Fast access for installers and service techs
• No panel removal or cabinet dismantling required
• Smooth, architectural compound curvature with or without visible trim
• Ideal for feature kitchens, plaster-wrapped hoods, or high-end concealed canopy designs
• Fully parametric — change a radius or taper and the entire hood updates automatically

Included

• Complete compound-curved range hood cabinet
• Slide-off canopy system
• Optional trim / strapping
• CV25+ compatible machining
