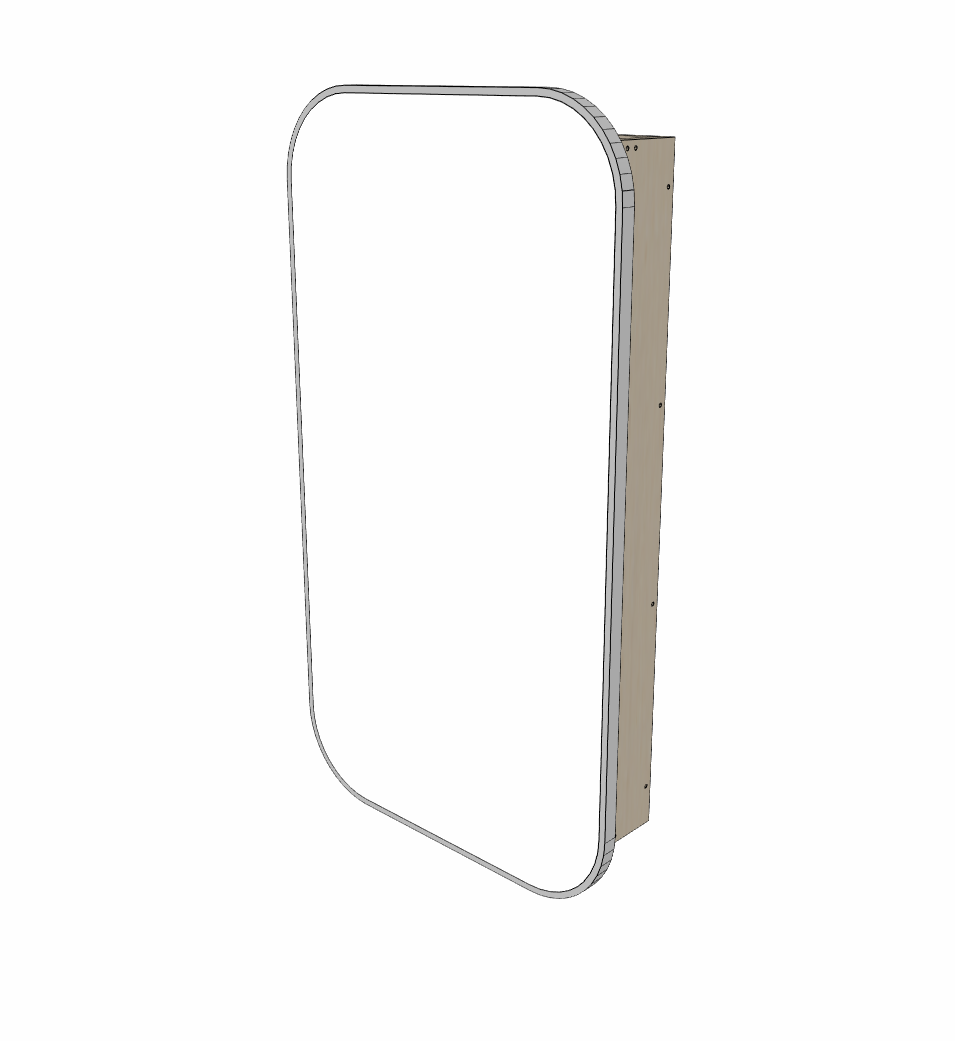

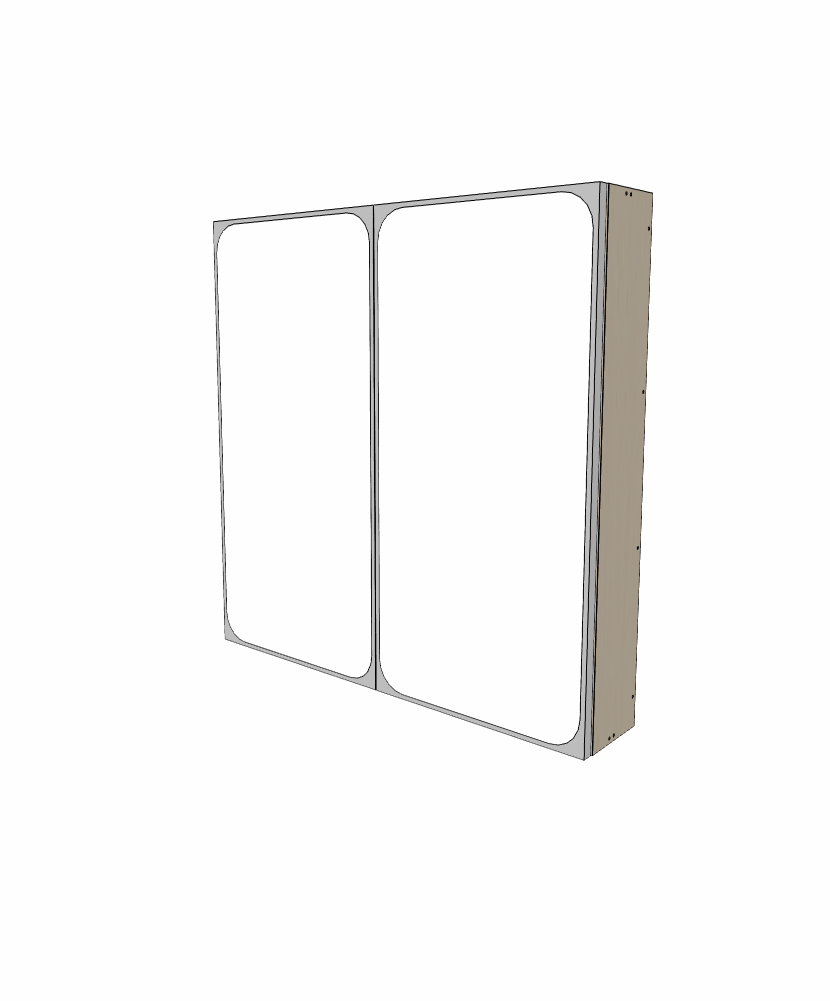

Recessed Mirrors – Automatic Pocket & Radius UCS

Add a mirror to any door with one tick.
This UCS handles all the geometry for you — the pocket route, the mirror part, the radius shaping, and the clearances — fully automated and production-ready.

What It Does

• Creates the mirror cut-out automatically
• Adds the mirror panel inside the door with correct sizing
• Lets you set the frame distance from the door edge
• Supports single frame or individual left/right/top/bottom frames
• Offers square corners, one radius, or per-corner radius control
• Includes a pocket clearance setting so the mirror always fits properly
• Sends clean output to S2M with no manual drawing

Why It Helps

• No more hand-drawing mirror pockets
• Perfectly repeatable for every door
• Customisable to match your design and CNC requirements
• Instantly updates when door sizes or frames change
• Eliminates guesswork, rework, and drawing time

Included

• Fully automated Door Mirror UCS (JavaScript)

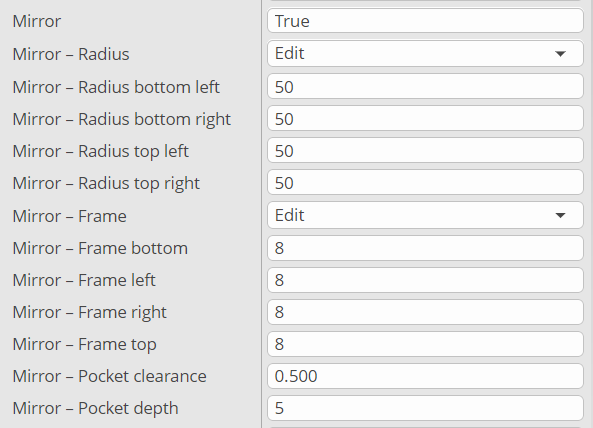

• Clear user controls in the CV interface
• Mirror + pocket update live as you adjust your door
