LED Lighting UCS

Professional LED groove routing made dead-simple inside Cabinet Vision.

Bring your cabinetry to life with clean, consistent LED channels—fully automated, fully parametric, and production-ready.

What It Does

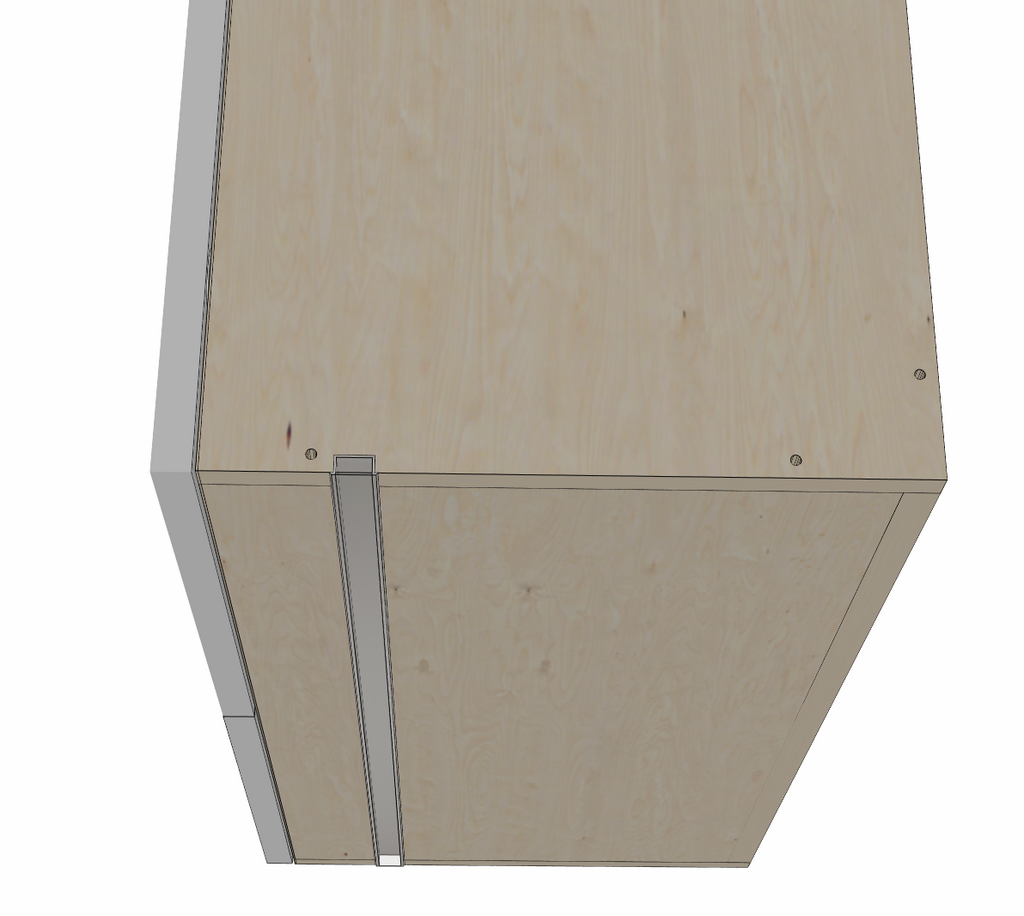

• Automatically creates LED grooves in your parts with perfect width, depth and offset
• Supports front or rear positions depending on cabinet style

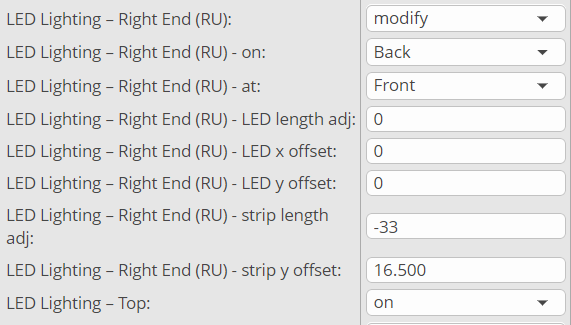

• Left/Right/Finished/Unfinished face control so your machining always lands on the correct side

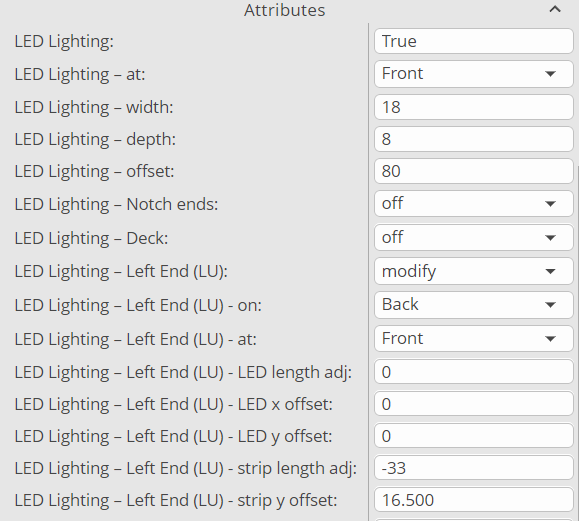

• Zero manual routing—just toggle the attribute and run it
• Works across bases, talls, uppers, vanities and custom assemblies
• Sends clean machining straight to S2M with no post-editing

Why It Matters

LED lighting is one of the easiest upsells in modern joinery—don’t waste time placing grooves manually. This UCS locks in your standards, eliminates mistakes, and gives you consistent, professional-grade results every time.

Perfect For

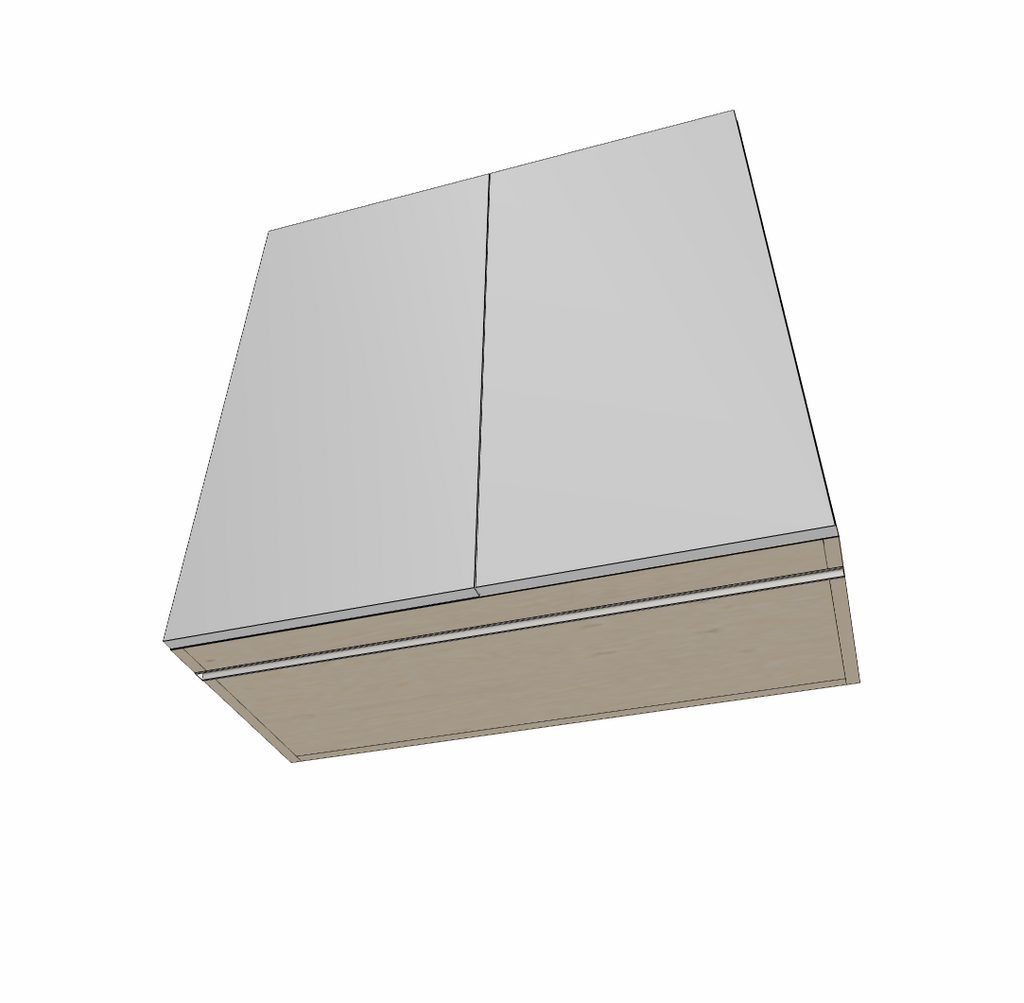

• Under-cabinet lighting
• Display cabinets

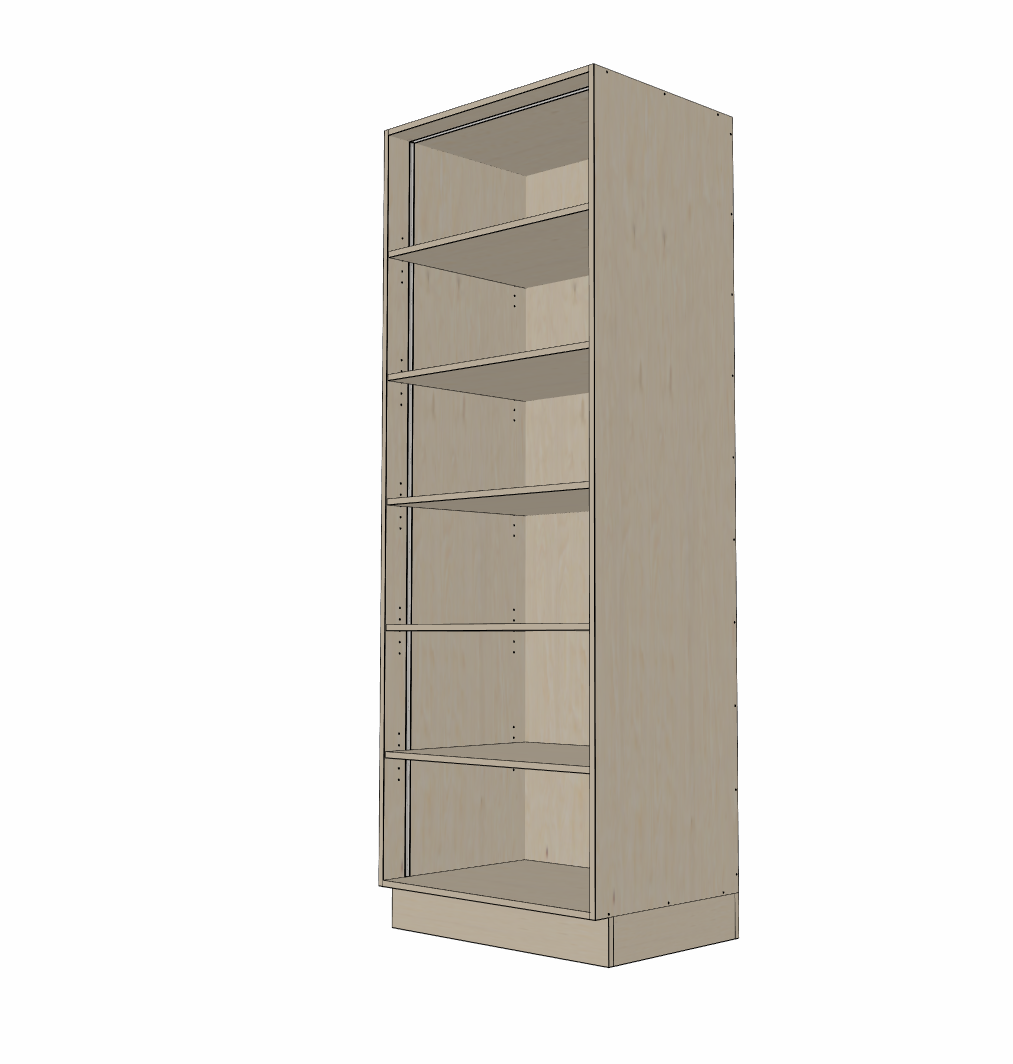

• Open shelves
• Wardrobes
• Pantries
• Anywhere you need precise LED channel routing

Built For Real Workshops

Fast. Reliable. Clean.
Designed for Cabinet Vision 25.2+ with production in mind.
