Hinge plate transfer for split cabinets

Hinge Plate Transfer – Automatic Drilling for cabinets sharing a door.

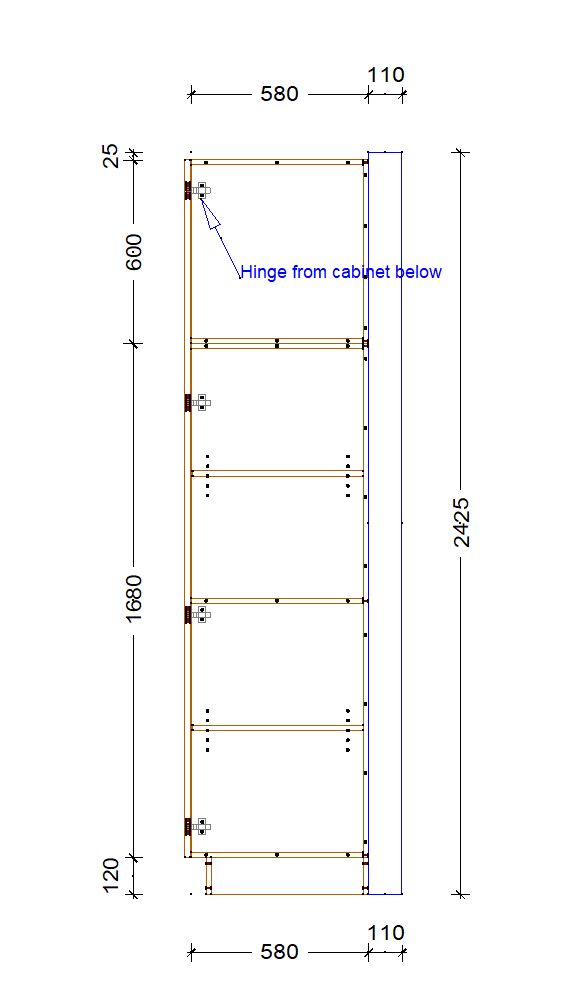

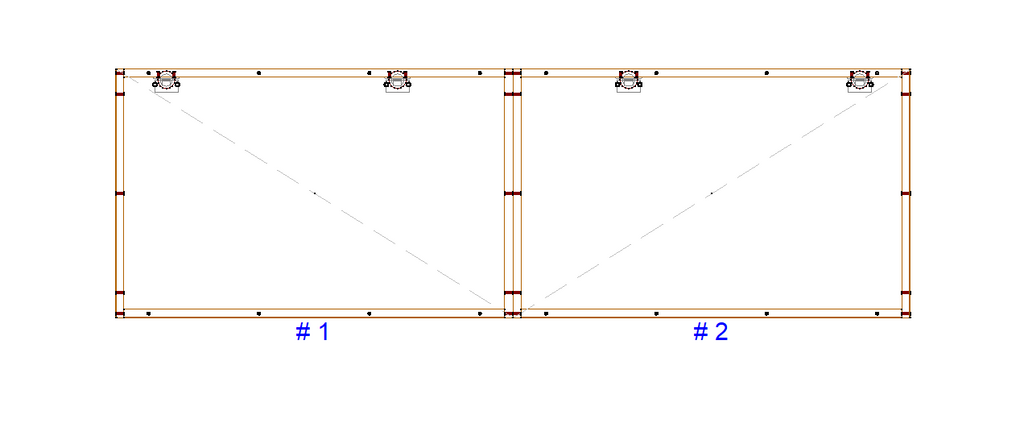

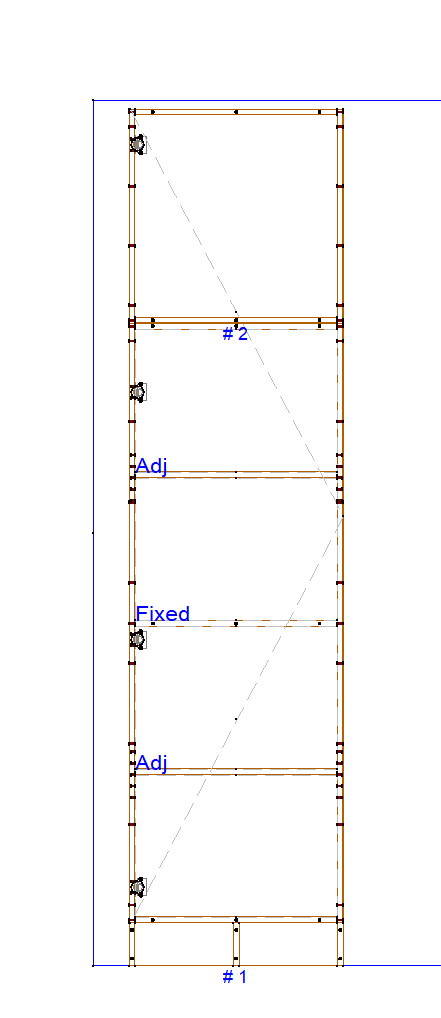

Stop fixing hinge positions by hand. This script automatically transfers hinge drilling from the donor door to the receiving cabinet—only when the hinge falls outside the cabinet boundary. Perfect for split cabinets, shared doors, and any setup where hinge plates don’t line up cleanly.

What It Does

• Detects hinge plates that sit outside the cabinet’s height

• Automatically inserts a matching hinge drilling operation

• Works for cross plates and inline plates

• Keeps both cabinets perfectly matched without manual tweaking

• Reduces errors in assembly, machining, and door alignment

Why You’ll Want It

• Zero manual hinge repositioning

• Consistent drilling across paired or multi-section cabinets

• Cleaner machining data for S2M

• Fast, predictable results every time

Ideal For

• Split cabinets

• Cabinets sharing a door

• Tall cabinets with multiple sections

• Any situation where hinge geometry must remain identical

Included

• Full JavaScript UCS

• Automatic hinge detection + transfer logic

• Compatible with CV25+
