Floating Shelf
$199.00
Floating Shelf UCS

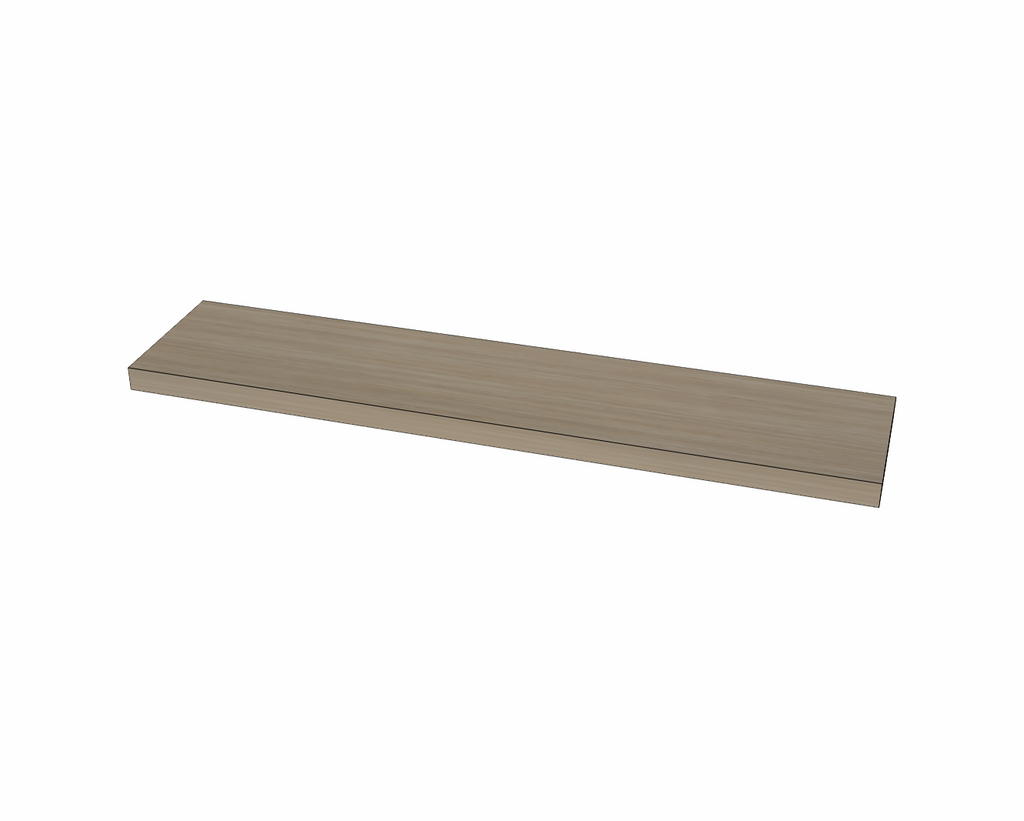

Clean floating shelves in Cabinet Vision — with mitred parts, optional finished ends, cleat generation, and LED groove routing.

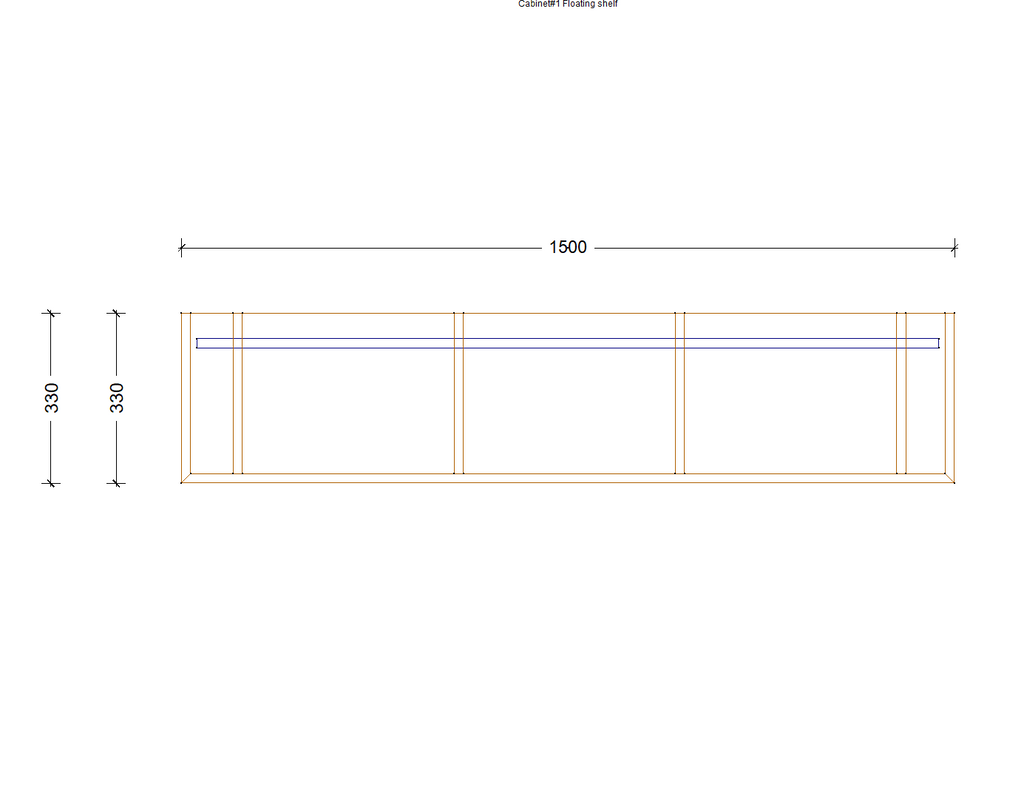

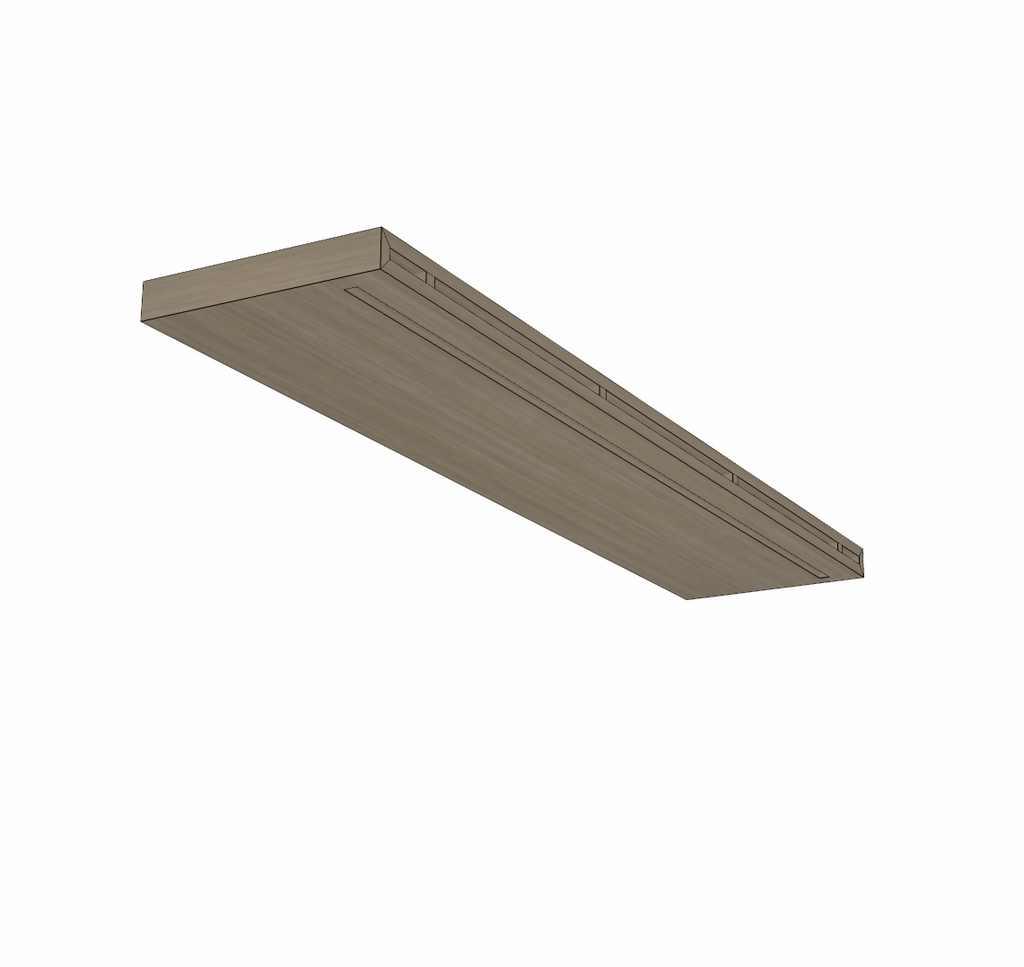

This UCS converts a shelf assembly into a proper “floating shelf” build by generating the top, bottom, front, and optional end panels with 45° mitres. It also includes practical scribe controls (wall/left/right) for real-world installs, plus optional cleats (cut as separate parts or “cut as one” with a clear cut note), and an LED strip groove you can place from the back or the front.
Key benefits
• Generates floating shelf parts automatically (top, bottom, front + optional ends)
• 45° mitred joins for a clean, seamless look
• End finish options: none / left / right / both
• Wall + side scribes for out-of-square installs
• Optional cleats with spacing + quantity control
• “Cut as one” cleat mode adds a clear cutting comment for the operator

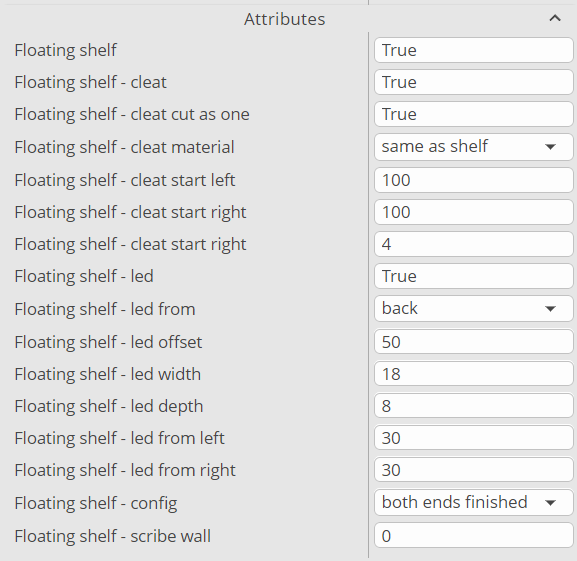

• Optional LED groove routing with tool ID, width, depth, and offsets
Built for real production workflows by The Cabinet Mate.
